Home > Products

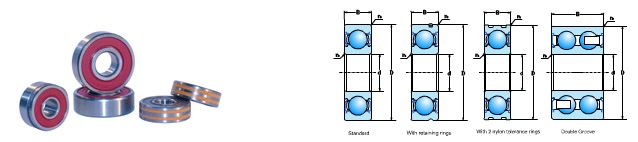

Deep groove ball bearings

Dimensions(mm) Basic load ratings(N) Limiting speeds Weight Remarks Item No.
d D B rsmin Cr Cor Rpm Kg JHB
8 22 7 0.3 3350 1400 32000 0.015   608-2RDA
8 22 11 0.3 3350 1400 32000   with retaining ring B874-2RDA
8 23 14 0.3 3350 1400 32000   with 2 nylon tolerence rings B800-2RDA
8 23 11 0.3 3350 1400 32000   with retaining ring B879-2RDA
8 23 14 0.3 3350 1400 32000   with retaining ring B885-2RDA
9 26 8 0.3 4550 1960 30000 0.023   629-2RDA
10 23 11 0.3 2700 1270 30000   with retaining ring B1046-2RDA
10 25 10 0.3 4550 1960 26000 0.024   62000-2RDA
10 26 8 0.3 4550 1960 29000 0.019   6000-2RDA
10 26 8 0.3 4550 1960 29000 0.019 with 2 nylon tolerance rings 6-100-2RDA
10 27 11 0.3 4550 1960 29000   with retaining ring B1050-2RDA
10 27 14 0.3 4550 1960 29000   with 2 nylon tolerence rings B900-2RDA
10 30 9 0.6 5100 2390 25000 0.035   6200-2RDA
12 28 8 0.3 5100 2390 26000 0.024   6001-2RDA
12 32 10 0.6 6100 2750 22000 0.04   6201-2RDA
12 32 14 0.6 6100 2750 22000 0.049   62201-2RDA
12 32 10 0.6 6100 2750 22000   with retaining ring B2012-2RDA
12 35 18 0.6 6100 2750 22000     B2011-2RDA
12 37 12 1.0 9700 4200 20000 0.064   6301-2RDA
12.7 28.58 7.938 0.4 4040 1750 19000 0.018 Inch size: 1/2"x1-1/8"x5/16" R8-2RDA
Dimensions(mm) Basic load ratings(N) Limiting speeds Weight Remarks Item No.
d D B rsmin Cr Cor Rpm Kg JHB
15 35 11 0.6 7750 3600 19000 0.048   6202-2RDA
15 35 13 0.6 7750 3600 19000     B2021-2RDA
15 38 19 0.6 7750 3600 19000     B2022-2RDA
15 42 13 1 11400 5450 17000 0.085   6302-2RDA
15 43 13 1 11400 5450 17000     B3021-2RDA
15 46 14 1 13500 6550 16000     B3022-2RDA
15 47 18 0.3 6800 3350 20000     B1583-2RDA
15 47 14 1 13500 6550 16000     B3031-2RDA
15 52 16 1.1 15900 7900 14000     B3041-2RDA
17 30 7 0.3 4650 2580 22000 0.021   6903-2RDA
17 35 10 0.3 6800 3350 20000 0.042   6003-2RDA
17 40 12 0.6 9600 4600 18000 0.072   6203-2RDA
17 47 14 1 13500 6550 16000 0.12   6303-2RDA
17 47 18 0.3 6800 3350 20000     B1594-2RDA
17 47 24 1 13500 6550 16000   Double row ball B3032-2RDA
17 52 16 1.1 15900 7900 14000     B3042-2RDA
17 52 17 1.1 15900 7900 14000     B3043-2RDA
17 52 18 1.1 15900 7900 14000     B3044-2RDA
20 37 9 0.3 6400 3700 19000 0.041   6904-2RDA
20 42 12 0.6 9400 5050 18000 0.072   6004-2RDA
20 47 14 1 12800 6650 16000 0.11   6204-2RDA
20 52 15 1.1 15900 7900 14000 0.15   6304-2RDA
25 42 9 0.3 7050 4550 16000 0.046   6905-2RDA
25 47 12 0.6 10400 5850 15000 0.085   6005-2RDA
25 52 15 1 14000 7850 13000 0.132   6205-2RDA
25 62 17 1.1 21200 10900 12000 0.24   6305-2RDA
25 62 25.4 1.1 21200 10900 8100 0.384   63305-2RDA
30 47 9 0.3 7250 5000 14000 0.05   6906-2RDA
30 55 13 1 13200 8300 13000 0.12   6006-2RDA
30 62 16 1 19500 11300 11000 0.208   6206-2RDA
30 72 19 1.1 26700 15000 10000 0.39   6306-2RDA
30 72 30.2 1.1 26700 15000 6600 0.553   63306-2RDA
45 85 19 1.1 32500 20400 7800 0.44   6209-2RDA
