R Series

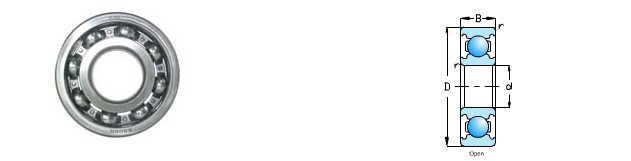

Boundary dimensions Mass(Kg) Bearing Number
d D B rs min (Approx.) JHB
in mm in mm in mm in mm
3/64 1.191 5/32 3.969 0.0626 1.59 0.004 0.10 0.09 R0
0.055 1.397 3/16 4.763 0.0780 1.98 0.004 0.10 0.17 R1
3/32 2.381 3/16 4.763 0.0626 1.59 0.004 0.10 0.12 R133
5/64 1.984 1/4 6.350 0.0937 2.38 0.004 0.10 0.35 R1-4
1/8 3.175 1/4 6.350 0.0937 2.38 0.004 0.10 0.27 R144
3/32 2.381 5/16 7.938 0.1094 2.78 0.006 0.15 0.50 R1-5
5/32 3.969 5/16 7.938 0.1094 2.78 0.004 0.10 0.50 R155
3/16 4.763 5/16 7.938 0.1094 2.78 0.004 0.10 0.50 R156
3/16 4.763 3/8 9.525 0.1252 3.18 0.004 0.10 1.00 R166
1/4 6.350 3/8 9.525 0.1252 3.18 0.004 0.10 0.50 R168
1/4 6.350 1/2 12.700 0.1252 3.18 0.006 0.15 1.80 R188
1/8 3.175 3/8 9.525 0.1563 3.97 0.012 0.30 1.50 R2
1/8 3.175 5/16 7.938 0.1094 2.78 0.004 0.10 1.00 R2-5
1/8 3.175 3/8 9.525 0.1094 2.78 0.006 0.15 1.00 R2-6
1/8 3.175 1/2 12.700 0.1720 4.37 0.012 0.30 3.20 R2A
3/16 4.763 1/2 12.700 0.1563 3.97 0.012 0.30 2.30 R3
3/16 4.763 5/8 15.875 0.1961 4.98 0.012 0.30 2.70 R3A
1/4 6.350 5/8 15.875 0.1961 4.98 0.012 0.30 4.50 R4
1/4 6.350 3/4 19.050 0.2189 5.56 0.016 0.40 7.70 R4A
